Dimension: outer
diameter x wall
thickness in mm
Inner diameter of the
spacer in mm
Standard bow width
in mm (other bow
widths are possible)
Box contents for
standard bow width
20 x 1,5
17,0
60
500
25 x 1,8
21,4
70
500
32 x 1,9
28,2
80
400
40 x 3,0
34,0
100
200
50 x 3,0
44,0
100
150
55 x 3,0
49,0
125
110
63 x 3,0
57,0
125
100
75 x 3,6
67,8
125
80
90 x 2,7
84,6
135
50
110 x 3,2
105,6
140
40

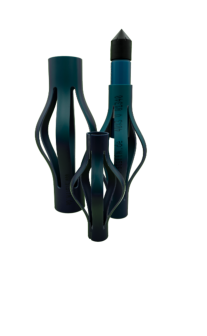

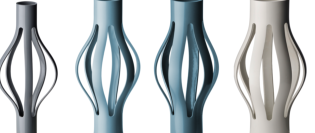

Basket centralizers made of solid-PVC, slotted,
for strands and GEWI anchors
The average length of the spacers up to 32x1.9 is approx. 150 to 170 mm, depending on the
sheet width The average length of spacers from 40x3 is approx. 250 to 290 mm.
The actual length is determined by the required sheet width. Box size: 0.8 x 0.5 x 0.6 m
Quality made in Germany
since 1995
Dimension: outer
diameter x wall
thickness in mm
Inner diameter of the
spacer in mm
Standard bow width in
mm (other bow widths
are possible)
Box contents for
standard bow width
20 x 1,5
17,0
60
500
25 x 1,8
21,4
70
500
32 x 1,9
28,2
80
400
40 x 3,0
34,0
100
200
50 x 3,0
44,0
100
150
55 x 3,0
49,0
125
110
63 x 3,0
57,0
125
100
75 x 3,6
67,8
125
80
90 x 2,7
84,6
135
50
110 x 3,2
105,6
140
40

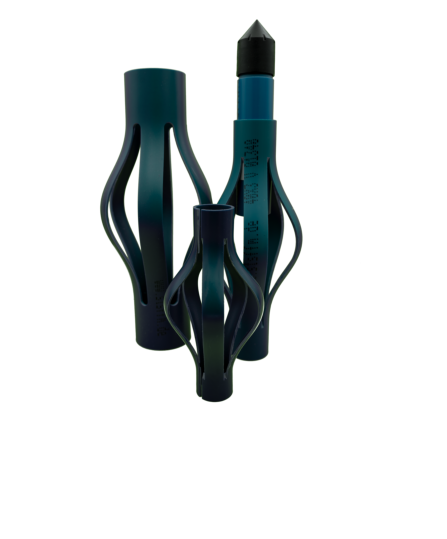

Basket centralizers made of solid-PVC, slotted,
for strands and GEWI anchors
The average length of the spacers up to 32x1.9 is approx. 150 to 170 mm, depending on the
sheet width The average length of spacers from 40x3 is approx. 250 to 290 mm.
The actual length is determined by the required sheet width. Box size: 0.8 x 0.5 x 0.6 m
