Description
1“
33,5/26,5
1 ¼“
40/31
1 ½“
50/42,6
1 ½“ KV
50/41
2“
60/50
2“ KV
60/40
External diameter
33,5 mm
40 mm
50 mm
50 mm
60 mm
60 mm
Internal diameter
26,5 mm
31 mm
42,6 mm
41 mm
50 mm
40 mm
Wall thikness
3,5 mm
4,5 mm
3,7 mm
4,5 mm
5,0 mm
10 mm
Sleeve spacing*
333 mm
333 mm
333 mm
333 mm
500 mm
500 mm
Pipe length
1,0 - 5,0 m
1,0 - 5,0 m
1,0 - 5,0 m
1,0 - 5,0 m
1,0 - 5,0 m
1,0 - 3,0 m
*Other cleeve spacings possible
Sleeve pipes are injection pipes made of solid PVC or steel, featuring strategically placed perforations.
Each perforation is covered by a rubber sleeve that inflates under injection pressure, allowing the
injected material to escape into the surrounding area.
The spacing between tge rubber sleeves can be adjusted to suit specific tasks.
After completing the injection process, the sleeve pipe should be thoroughly rinsed.
If needed, a subsequent grouting process can be performed at a later time.
Technical and economic benefits of the sleeve pipe method:
-the reliable production of an injection body
-the option of subsequent grouting
-the separation in time and therefore the independence of drilling and injection work
Storage instructions:
-do not store pipes without protection from the weather
-recommended storage temperature: 0°C - 25°C.
Temperatures above this are only permissible for short periods.
Improper storage can affect the function of the product.

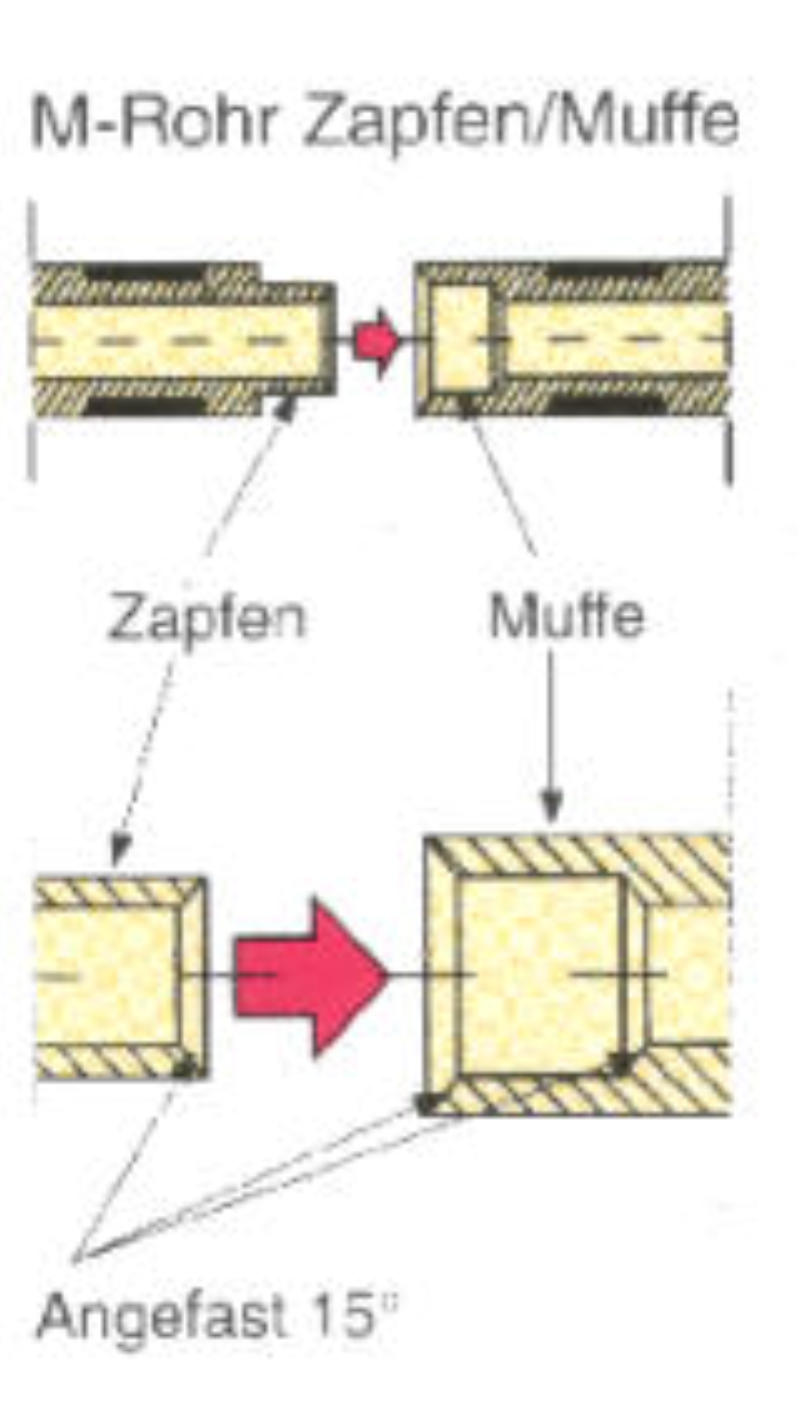

STS Sleeve Pipes made of solid-PVC with male/female joints
Adhesive connection / threaded connection
Quality made in Germany
since 1995
Description
1“
33,5/26,5
1 ¼“
40/31
1 ½“
50/42,6
1 ½“ KV
50/41
2“
60/50
2“ KV
60/40
External diameter
r
33,5 mm
40 mm
50 mm
50 mm
60 mm
60 mm
Internal diameter
26,5 mm
31 mm
42,6 mm
41 mm
50 mm
40 mm
Wall thikness
3,5 mm
4,5 mm
3,7 mm
4,5 mm
5,0 mm
10 mm
Sleeve spacing*
333 mm
333 mm
333 mm
333 mm
500 mm
500 mm
Pipe length
1,0 - 5,0 m
1,0 - 5,0 m
1,0 - 5,0 m
1,0 - 5,0 m
1,0 - 5,0 m
1,0 - 3,0 m
*Other cleeve spacings possible
Sleeve pipes are injection pipes made of solid PVC or steel, featuring strategically placed perforations.
Each perforation is covered by a rubber sleeve that inflates under injection pressure, allowing the
injected material to escape into the surrounding area.
The spacing between tge rubber sleeves can be adjusted to suit specific tasks.
After completing the injection process, the sleeve pipe should be thoroughly rinsed.
If needed, a subsequent grouting process can be performed at a later time.
Technical and economic benefits of the sleeve pipe method:
-the reliable production of an injection body
-the option of subsequent grouting
-the separation in time and therefore the independence of drilling and injection work
Storage instructions:
-do not store pipes without protection from the weather
-recommended storage temperature: 0°C - 25°C.
Temperatures above this are only permissible for short periods.
Improper storage can affect the function of the product.
STS Sleeve Pipes made of solid-PVC with male/female joints
Adhesive connection / threaded connection
